560D
HAGA
100000 Set/Sets per Month
560D Multi Spring Mechanical Seal Material Stationary Ring(Ceramic/SiC/TC) Stationary Ring(Ceramic/SiC/TC) Secondary Seal(NBR/EPDM/VITON) Secondary Seal(NBR/EPDM/VITON) |

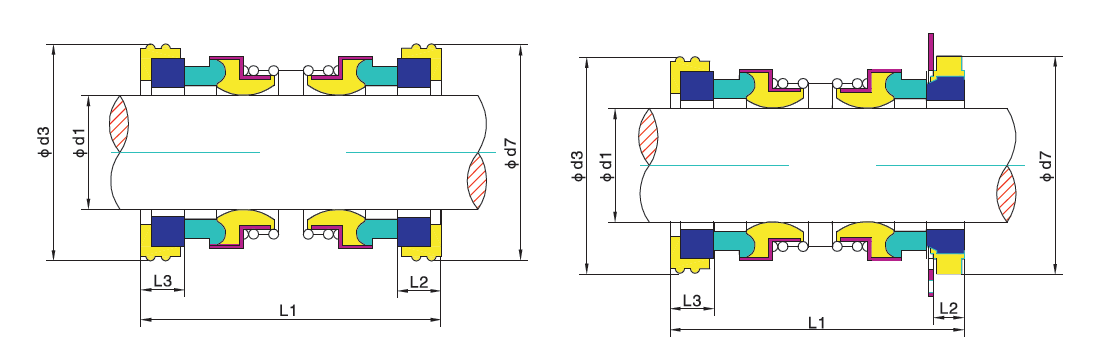

Model | d1 | d3 | d7 | L1 | L2 | L3 |
HG560D-13 | 13 | 25 | 25 | 36 | 5 | 5 |
HG560D-14 | 14 | 30 | 30 | 37 | 5 | 5 |
HG560D-15 | 15 | 30 | 30 | 37 | 5 | 5 |
HG560D-16 | 16 | 30 | 30 | 37 | 5 | 5 |
HG560D-18 | 18 | 35 | 38 | 49 | 7 | 10 |
HG560D-19 | 19 | 35 | 38 | 49 | 7 | 10 |
HG560D-20 | 20 | 38 | 44 | 49 | 7 | 7 |
HG560D-25 | 25 | 44 | 50 | 51 | 7 | 7 |
HG560D-30 | 30 | 50 | 57 | 59 | 9 | 8 |
HG560D-35 | 35 | 58 | 64 | 61 | 9 | 9 |
HG560D-40 | 40 | 64 | 70 | 64 | 11 | 9 |
HG560D-45 | 45 | 66 | 70 | 65 | 10 | 9 |
HG560D-50 | 50 | 72 | 80 | 69 | 10 | 9 |
560D Multi Spring Mechanical Seal Material Stationary Ring(Ceramic/SiC/TC) Stationary Ring(Ceramic/SiC/TC) Secondary Seal(NBR/EPDM/VITON) Secondary Seal(NBR/EPDM/VITON) |
Model | d1 | d3 | d7 | L1 | L2 | L3 |
HG560D-13 | 13 | 25 | 25 | 36 | 5 | 5 |
HG560D-14 | 14 | 30 | 30 | 37 | 5 | 5 |
HG560D-15 | 15 | 30 | 30 | 37 | 5 | 5 |
HG560D-16 | 16 | 30 | 30 | 37 | 5 | 5 |
HG560D-18 | 18 | 35 | 38 | 49 | 7 | 10 |
HG560D-19 | 19 | 35 | 38 | 49 | 7 | 10 |
HG560D-20 | 20 | 38 | 44 | 49 | 7 | 7 |
HG560D-25 | 25 | 44 | 50 | 51 | 7 | 7 |
HG560D-30 | 30 | 50 | 57 | 59 | 9 | 8 |
HG560D-35 | 35 | 58 | 64 | 61 | 9 | 9 |
HG560D-40 | 40 | 64 | 70 | 64 | 11 | 9 |
HG560D-45 | 45 | 66 | 70 | 65 | 10 | 9 |
HG560D-50 | 50 | 72 | 80 | 69 | 10 | 9 |
