TYPE F
HAGA
100000 Set/Sets per Month
MATERIAL: Rotary Ring (Plastic Carbon/Carbon/SiC) Stationary Ring (Ceramic/SiC) Secondary Seal(NBR/HNBR) Spring & Other parts(SUS304/SUS316) |

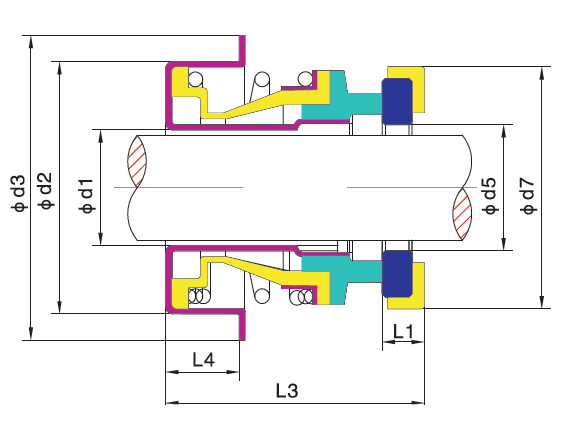

Model | d1 | d2 | d3 | d5 | d7 | L3 | L1 | L4 |
HGF-12S | 14.2 | 28.55 | 32 | 14 | 25 | 18.2 | 5 | 8 |
HGF-12M | 14.2 | 30 | 35 | 15 | 24/23 | 18 | 5 | 8 |
HGF-12L | 14.2 | 33.4 | 38 | 14 | 25 | 18 | 5 | 6.7 |
HGF-16 | 18.2 | 36.45 | 41.5 | 18 | 31 | 19.8 | 5 | 8.5 |
HGF-16L | 18.2 | 38.1 | 43.5 | 18 | 31 | 19.8 | 5 | 8.8 |
HGF-16LD | 18.2 | 38.1 | 43.5 | 18 | 31 | 19.8 | 5 | 8.8 |
HGF-20S | 21.2 | 38 | 43.8 | 21 | 35 | 20.5 | 5 | 9.5 |
HGF-20 | 21.2 | 40 | 43.8 | 21 | 35 | 20.5 | 5 | 9.5 |
HGF-25S | 26.4 | 46 | 51 | 26 | 44 | 25 | 7 | 10 |
HGF-25 | 26.4 | 47 | 51 | 26 | 44 | 25 | 7 | 12 |
HGF-25L | 26.4 | 52 | 57 | 27 | 48 | 25 | 7 | 12 |
HGF-30 | 31 | 52 | 57 | 32 | 48 | 27 | 8 | 11 |
MATERIAL: Rotary Ring (Plastic Carbon/Carbon/SiC) Stationary Ring (Ceramic/SiC) Secondary Seal(NBR/HNBR) Spring & Other parts(SUS304/SUS316) |
Model | d1 | d2 | d3 | d5 | d7 | L3 | L1 | L4 |
HGF-12S | 14.2 | 28.55 | 32 | 14 | 25 | 18.2 | 5 | 8 |
HGF-12M | 14.2 | 30 | 35 | 15 | 24/23 | 18 | 5 | 8 |
HGF-12L | 14.2 | 33.4 | 38 | 14 | 25 | 18 | 5 | 6.7 |
HGF-16 | 18.2 | 36.45 | 41.5 | 18 | 31 | 19.8 | 5 | 8.5 |
HGF-16L | 18.2 | 38.1 | 43.5 | 18 | 31 | 19.8 | 5 | 8.8 |
HGF-16LD | 18.2 | 38.1 | 43.5 | 18 | 31 | 19.8 | 5 | 8.8 |
HGF-20S | 21.2 | 38 | 43.8 | 21 | 35 | 20.5 | 5 | 9.5 |
HGF-20 | 21.2 | 40 | 43.8 | 21 | 35 | 20.5 | 5 | 9.5 |
HGF-25S | 26.4 | 46 | 51 | 26 | 44 | 25 | 7 | 10 |
HGF-25 | 26.4 | 47 | 51 | 26 | 44 | 25 | 7 | 12 |
HGF-25L | 26.4 | 52 | 57 | 27 | 48 | 25 | 7 | 12 |
HGF-30 | 31 | 52 | 57 | 32 | 48 | 27 | 8 | 11 |
